Practical 5080A Multi Function Calibrator 600 MHz High Performance

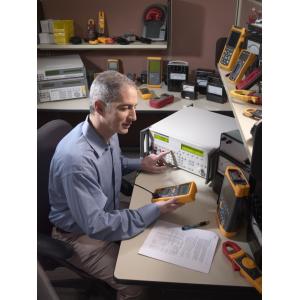

Fluke 5080A High Performance Multi-product Calibrator

Description of Fluke 5080A Multi Product Calibrator

Calibration solutions for your analog and digital workload

High compliance
Protection circuitry
Calibrates a wide workload, including analog meters and 3.5 and 4.5 digits DMMs

The 5080A Multi-Product Calibrator calibrates your analog and digital workload accurately and economically. Its high voltage and current compliance makes analog workload calibration easy and precise. And built-in protection circuitry protects it against damaging input voltages.

This easy-to-use multifunction calibrator can handle a wide meter calibration workload that includes:

Analog meters
Panel meters
Digital multimeters
Watt meters
Clamp meters (with coil accessory)
Megohm meters (optional)
Oscilloscopes to 200 MHz (optional)
…and more

Versatile software applications enable you to record paperless results, and more. Best of all, the 5080A Multi-Product Calibrator offers this versatile functionality at a price that fits nicely into your budget.

Technical Specifications

Voltage DC

	Range: 0 to ±1020V
	Best 1 Year Specification: ±0.01% of setting

Current DC

	Range: 0 to ±20.5A
	Best 1 Year Specification: ±0.05% of setting

Resistance

	Range: 0 to 190 MO, 19 values in x1 and x1.9
	Best 1 Year Specification: ±0.025% of setting

Voltage AC

	Range: 1 mV to 1020V 45Hz to 1 kHz, Sine
	Best 1 Year Specification: ±0.1% of setting

Current AC

	Range:29 mA to 20.5A 45 Hz to 1 kHz, Sine
	Best 1 Year Specification: ±0.1% of setting

DC Power

	Range:10.9 mW to 20.5 kW
	Best 1 Year Specification: ±0.11% of setting

AC Power

	Range: 10.9 mW to 20.5 kW 45-65 Hz, PF=1
	Best 1 Year Specification: ±0.36% of setting

Phase

	Range: 0 to ± 179.99° 45 Hz to 1 kHz
	Best 1 Year Specification: ±0.25° of setting

Frequency

	Range: 45 Hz to 1 kHz
	Best 1 Year Specification: ±50 ppm of setting

General Specifications

Warm up Time

Twice the time since last warmed up, to a maximum of 30 minutes

Settling Time

Less than 5 seconds for all functions and ranges except as noted

Standard Interfaces

RS-232 and Ethernet

Temperature Performance

Operating: 0°C to 50°C

Calibration (tcal):15°C to 35°C

Storage:-20°C to +70°C

Temperature Coefficient

Temperature coefficient for temperatures outside tcal ±5 °C is 10 % of the stated specification per °C for temperatures in the range of 0 °C to 35 °C. Above 35 °C, the temperature coefficient is 20 % of the stated specification per °C.

Relative Humidity

Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C

Storage:<95%, non-condensing

Altitude

Operating: 2,000m (6,500 ft) maximum

Non-operating: 12,200m (40,000 ft) maximum

Safety

Meets EN. 61010-1:2001, CAN/CSA-C22.2 No. 61010-1-04, UL 61010-1: 2004

Analog Low Isolation

20V

EMC

Meets EN613261:2006.

Line Power

Line Voltage (selectable): 100V, 120V, 220V, 240V

Line Frequency: 47 to 63 Hz

Line Voltage Variation: + 10% about line voltage setting

Power Consumption

600 VA

Calibration Documentation

Report of calibration with data included; 17025 accredited report optional

Dimensions

Height:19.3 cm (7.6 in)

Width:43.2 cm (17 in), 44.3 cm (17.5 in) including handles

Depth:53.8 cm (21.2 in)

Weight (without options)

22 kg (48 lbs.)

Absolute Uncertainty Definition

The specifications include stability, temperature coefficient, linearity, line and load regulation, and the traceability of the external standards used for calibration. It is not necessary to add anything to determine the total specification for the temperature range indicated.

Specification Confidence Interval

99%

List of Options

Model Name	Description
5080A	Multi-Product Calibrator
5080A/MEG	Multi-Product calibrator with Megohm Meter Calibration Option
5080A/SC	Multi-Product Calibrator with Oscilloscope Calibration Option
5080A/SC/MEG	Multi-Product Calibrator with Megohm Meter and Oscilloscope Calibration Option
