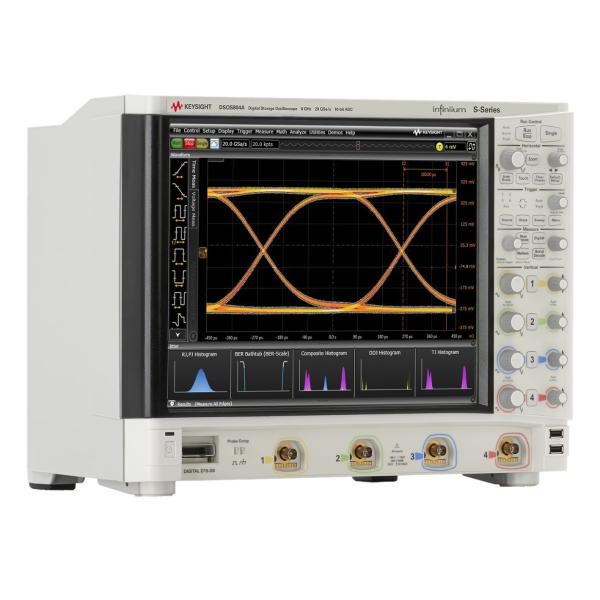

The DSOS804A S-Series oscilloscopes have 8.0 GHz of bandwidth, a
15” XGA capacitive touch screen, and a 10-bit analog-to-digital
converter.
HIGHLIGHTS of Keysight Agilent Oscilloscope DSOS804A
- 4 analog channels
- 8 GHz bandwidth
- Achieve up to 16 bits of vertical resolution with our advanced
system architecture
- Capture a longer signal trace with 20 GSa/s maximum sample rate and
100 Mpts/channel of standard memory
- Get superior signal integrity with an average system effective
number of bits (ENOB) of 8.1 bits at full bandwidth
- Gain increased usability with the multi-touch supported 15-inch
capacitive touch screen and solid state drive for fast boot and
reliability
- Improve your testing with a wide range of protocol, compliance, and
analysis software
What's included:
- Four N2873A 500-MHz passive probes
- 8 GHz BNC calibration cable
- Keysight I/O libraries suite
- Keyboard and mouse
- 8 GHz BNC calibration cable
- User guide and programmer’s guide ship on oscilloscope drive
- Probe accessory pouch
- Service guide available on Keysight.com
- Download BenchVue Basic app for free to control your instruments
MSO models add 16 high-speed timing channels with standard 128 Mpts
digital memory, allowing you to retain fast 2 GSa/s sample rates
over long periods of time. All existing DSOs are user-upgradable to
MSOs with part N2901E. The required upgrade time is less than 5
minutes.
•Use symbols to quickly interpret waveforms
• Trigger on and view specific control or data flow events
• Use the digital channels to evaluate control signal relationships
and data buses up to 16 bits wide
• Trigger on and monitor power rail sequencing timing relationships
• Capture data from FPGA debug ports
• Use digital channels for protocol trigger and decode (I²C, SPI,
RS-232, JTAG, USB and more)
• Combine with oscilloscope channels to trigger across up to 20
channels simultaneously
OPTIONS of DSOS804A
Accessories
| N2902B | Rackmount Kit - 9000 and S Series Oscilloscope |
| DSOS000-821 | Precision BNC to SMA adapters (qty 2) |
Analysis Software Applications
| DSOS001-DSA | Includes 200 Mpts/CH Memory and EZJIT Complete |
Calibration Documentation
| DSOS000-A6J | ANSI Z540 Compliant Calibration |
| DSOS000-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| DSOS000-AMG | Calibration + Uncertainties + Guardbanding (Accredited) |
Additional Memory
| DSOS000-100 | Includes 100 Mpts/CH Memory |
| DSOS000-200 | Includes 200 Mpts/CH Memory |
| DSOS000-400 | Includes 400 Mpts/CH Memory |
