Pre-Owned Tektronix Arbitrary Function Generators AFG31000 Series
Description of Tektronix AFG31000 Series
The Tektronix AFG31000 Series is a high-performance AFG with
built-in arbitrary waveform generation, real-time waveform
monitoring, and the largest touchscreen on the market. Providing
advanced waveform generation and programming capabilities, waveform
verification, and a modern touch-screen interface, the new AFG31000
is sure to delight and simplify the job of every researcher and
engineer.
Key Performance Specifications of AFG31000 Series
- 1 or 2 channel models
- Output amplitude range 1 mVP-P to 10`VP-P into 50`Ω loads
- Basic (AFG) mode:
- 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms
- 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates
- 14-bit vertical resolution
- Built-in waveforms include sine, square, ramp, pulse, noise, and
other frequently used waveforms
- Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
- Advanced (Sequence) mode:
- Continuous mode (optional Sequence, Triggered and Gated modes)
- 16 Mpts arbitrary waveform memory on each channel (128 Mpts
optional)
- Up to 256 steps in sequence mode with loop, jump and wait events
- Variable sampling clock 1 µSa/s to 2 GSa/s
Key Features of AFG31000 Series
- Patented InstaView™ technology enables engineers to see the actual
waveform at the Device Under Test (DUT) in real time, without the
need of an oscilloscope and probe, eliminating the uncertainty
caused by mismatched impedance
- Sequencing option adds the ability to program long, complex
waveforms with up to 256 steps
- The 9-inch capacitive touch screen works like a smart phone and has
short-cuts to frequently used settings

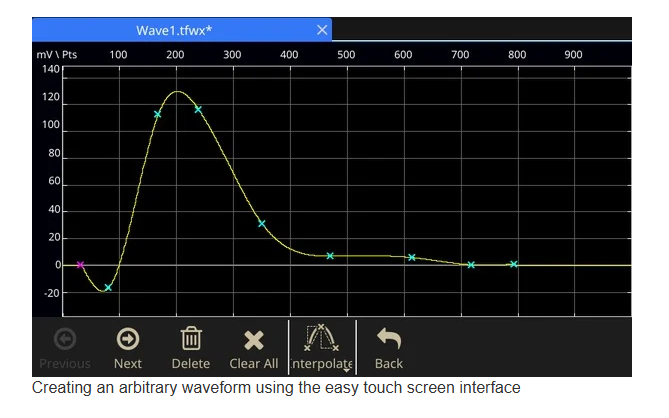

- Built-in ArbBuilder lets you create and edit arbitrary waveforms on
the instrument, eliminating the need to connect to a PC
- Outputs are protected from over voltage and current to minimize
potential instrument damage
- Built-in Double Pulse Test application to generate voltage pulses
with varying pulse widths onto the DUTs
Applications of AFG31000 Series
- Advanced research
- Clock and system synchronization
- Replication of real world signals
- Component and circuit characterization and validation
- Embedded circuit design and test
- General purpose signal generation
- Double pulse test
Ordering Information
Models
AFG31021 1 μHz to 25 MHz sine wave, 1-channel arbitrary function
generator
AFG31022 1 μHz to 25 MHz sine wave, 2-channel arbitrary function
generator
AFG31051 1 μHz to 50 MHz sine wave, 1-channel arbitrary function
generator
AFG31052 1 μHz to 50 MHz sine wave, 2-channel arbitrary function
generator
AFG31101 1 μHz to 100 MHz sine wave, 1-channel arbitrary function
generator
AFG31102 1 μHz to 100 MHz sine wave, 2-channel arbitrary function
generator
AFG31151 1 μHz to 150 MHz sine wave, 1-channel arbitrary function
generator
AFG31152 1 μHz to 150 MHz sine wave, 2-channel arbitrary function
generator
AFG31251 1 μHz to 250 MHz sine wave, 1-channel arbitrary function
generator
AFG31252 1 μHz to 250 MHz sine wave, 2-channel arbitrary function
generator
Model Overview
| Model | Sine Frequency Range | Number of
Channels |
| AFG31021 | 25 MHz | 1 |
| AFG31051 | 50 MHz |
| AFG31101 | 100 MHz |
| AFG31151 | 150 MHz |
| AFG31251 | 250 MHz |
| AFG31022 | 25 MHz | 2 |
| AFG31052 | 50 MHz |
| AFG31102 | 100 MHz |
| AFG31152 | 150 MHz |
| AFG31252 | 250 MHz |
