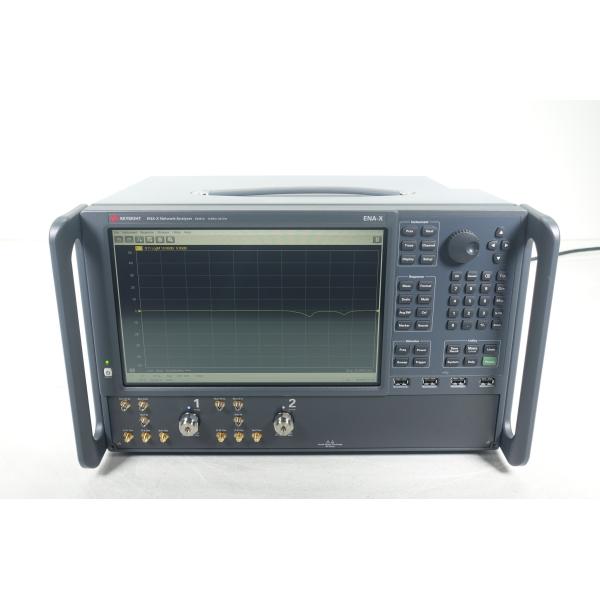

Accelerate 5G and satellite communication component characterization with the Keysight E5081A ENA-X vector network analyzer (VNA). The ENA-X is the only solution that produces fast and accurate EVM measurements on a mid-range network analyzer.

Keysight's spectral correlation technique directly analyzes the modulated input and output signals in the frequency domain on the network analyzer. Current solutions on the market require a network and spectrum analyzer to characterize components fully. With the new ENA-X, you can ensure test accuracy and repeatability with a single test setup using full vector correction at the DUT plane. Avoid manually reconfiguring setups or automating complex switch-based systems — verify device performance faster and with less error potential with the ENA-X network analyzer.

• Achieve the lowest residual EVM with integrated modulation distortion software.
• Ensure test accuracy and improve noise figure measurements with wide dynamic range.
• Perform flexible high-power tests with direct receiver access to integrate booster amplifiers, attenuators, or directional couplers.
• Address input port mismatch, channel power, and source errors with vector-corrected calibration at the DUT plane.
• Test faster with modulated distortion and spectrum analysis, noise figure, vector mixer measurements, and more with one instrument.

Features of E5081A

Options of Keysight (Agilent) E5081A:

• 2452-port test set, 9 kHz to 4.5 GHz with bias tees
• 2652-port test set, 9 kHz to 6.5 GHz with bias tees
• 2952-port test set, 9 kHz to 9 GHz with bias tees
• 4454-port test set, 9 kHz to 4.5 GHz with bias tees
• 4654-port test set, 9 kHz to 6.5 GHz with bias tees
• 4954-port test set, 9 kHz to 9 GHz with bias tees
• 1E5High Stability Timebase
• 790Measurement Wizard Assistant (MWA) Software
• UNQStandard stability timebase
• 010Time Domain Analysis
• 017Removable Data Storage
• 019Standard Data Storage
• 1CMRack mount kit for installation without handles
• 1CPRack mount kit for installation with handles
