Keysight E5071C ENA Vector Network Analyzer with 20 GHz Frequency, 123 dB Dynamic Range, and 4-port Configurable Test Set

Keysight E5071C ENA Vector Network Analyzer, E5092A Configurable Multiport Test Set

Product Highlights

As device characterization demands more measurement types, higher frequencies, and tighter tolerances, you need adaptable solutions that can meet current requirements while future-proofing against new challenges. The Keysight E5071C ENA has been discontinued and replaced with more capable ENA models designed to address evolving needs.

Click here to explore our latest ENA solutions available in benchtop, PXI, and our new Streamline form factor.

Key Features

2- or 4-port, 50 ohm, S-parameter test set
Investment protection through upgradability across all options
Wide dynamic range: > 123 dB dynamic range at test port (typical)
Fast measurement speed: 39 ms @ full 2-port cal, 1601 points
High temperature stability: 0.005 dB/°C
Low trace noise: 0.004 dB RMS @ 70 kHz IFBW
Output Power: 10 dBm
Harmonics: -25 dBc
Noise Floor: -131 dBm
Best Speed at 201 Point, 1 Sweep: 5 ms
Integrated 2- and 4-ports with balanced measurements
Enhanced accuracy, yield and margins with wide dynamic range (130 dB), fast measurement speed (8 ms) and excellent temperature stability (0.005 dB/°C)

Available Options

Model Number	Configuration
E5071C-230	2-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-235	2-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-240	2-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-245	2-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-260	2-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-265	2-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-280	2-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-285	2-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-430	4-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
E5071C-435	4-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
E5071C-440	4-port test set, 9 kHz to 4.5 GHz without bias tees
E5071C-445	4-port test set, 100 kHz to 4.5 GHz with bias tees
E5071C-460	4-port test set, 9 kHz to 6.5 GHz without bias tees
E5071C-465	4-port test set, 100 kHz to 6.5 GHz with bias tees
E5071C-480	4-port test set, 9 kHz to 8.5 GHz without bias tees
E5071C-485	4-port test set, 100 kHz to 8.5 GHz with bias tees
E5071C-2D5	2-port test set, 300 kHz to 14 GHz with bias tees
E5071C-4D5	4-port test set, 300 kHz to 14 GHz with bias tees
E5071C-2K5	2-port test set, 300 kHz to 20 GHz with bias tees
E5071C-4K5	4-port test set, 300 kHz to 20 GHz with bias tees

Frequently Asked Questions

Can you ship the order to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other question?

You can contact us online or leave us messages below.

Product Images

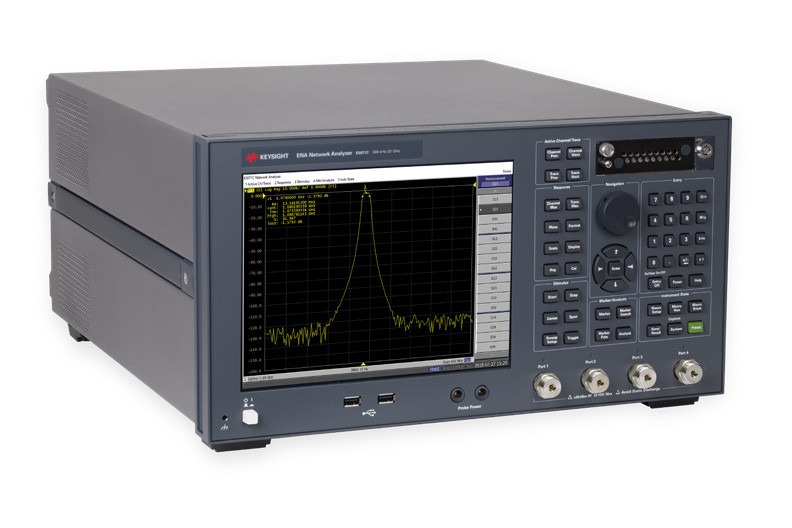

Keysight E5071C ENA Vector Network Analyzer front view

Keysight E5071C ENA Vector Network Analyzer display interface

Keysight E5071C ENA Vector Network Analyzer technical specifications
